LGX Mounting Accessories

LGX Mounting Accessories

Spare parts set for the Bondtech LGX™ Large Gears eXtruder with:

  • 3x M3x30 Low Head Screw;
  • 4x M3x18 Motor Studs with M3x4 mounting thread;
  • 1x 30mm PTFE Tube.


Extend the possibilities of your LGX™ with this mounting hardware set.

  • Mount a plate in between the extruder and the stepper motor with the longer screws;
  • Extend the mounting possibilities with the motor studs (up to 4 additional mounting points);
  • Improve the Direct Drive performance with the PTFE tube (Sized for Copperhead).


M3x30 Low Head Screws recommendations:

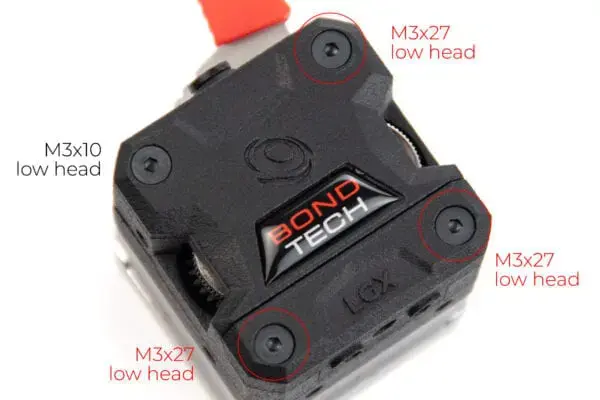

Replace the M3x27mm screws on the 3 positions highlighted in the picture.
The M3x30 screws are compatible with mounting plates from 1 and up to 3mm thickness.
If mounting plate is 1mm thick, or thinner, use the default screws M3x27.

PTFE tube lengths:
Copperhead screw mount : 30mm
New Mosquito and Mosquito Magnum : 11 mm
Old Mosquito and Mosquito Magnum : 10 mm

PTFE cut recommendations:
PTFE tube should be cut straight on both ends.
Slight chamfer inside is recommended, but not mandatory.

    19.00 ₪מחיר
    אזל מהמלאי
